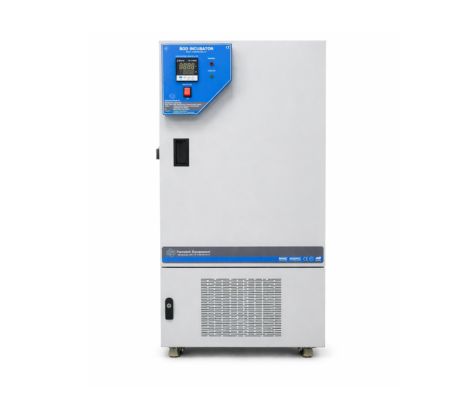

BOD Incubator FE - 111
BOD Incubator FE - 111
Applications of "Ferrotek" BOD Incubator include:
Biochemical Oxygen Demand Tests, storage of cultures, vaccines, culture of bacteria, micro-organism, serum incubation, seed germination etc.
Ferrotek BOD Incubators are primarily designed for Biological Oxygen Demand tests performed in Laboratories, Pollution Control Houses, Research & Development Centres etc.
Also used for incubation of samples at a set temperature in Industrial Houses, Medical Centres, Hospitals & Educational Institutes.
Salient Features of "Ferrotek" BOD Incubator:
• Precise Temperature Control with PID Control.
• Ergonomically Designed for versatile usage.
• Low Maintenance & Energy Efficient.
Specifications:
• Temperature Range: 05 - 50°C with accuracy ±0.5°C using PID Digital Controller with PT-100 sensor.
• Cooling: Hermetically sealed, CFC Free, ISI Marked compressor with condenser, fan motor etc.
• Heating: Strip heating elements in airflow path.
• Uniformity maintained by F.H. motors with fan.
• Triple walled construction with SS/MS outer body & heavy SS inner chamber.
• Adjustable perforated shelves with ribs support.
• Mounted on castor wheels for easy movement.
• Full view inner acrylic door for inspection without disturbing temperature.
• Magnetic gasket door with lock & key.
• Door operated illumination.
• 75 mm insulation with mineral glass wool.
• Power Supply: 220/240V AC, Single Phase.
Available Sizes & Capacity:
1. 455 x 610 x 410 mm — 4 cu.ft.
2. 500 x 825 x 415 mm — 6 cu.ft.
3. 565 x 865 x 550 mm — 10 cu.ft.
4. 650 x 900 x 580 mm — 12 cu.ft.
5. 650 x 950 x 655 mm — 15 cu.ft.
